This premium performance 6V dry series battery is equipped with an AP & 5/16” Stud terminal type and has more capacity than traditional lead-acid batteries, even in extreme conditions. The REV-L16-400 battery meets UL and CE certifications. <br><br>All RELiON R4000 batteries have installation flexibility. These non-hazardous, clean batteries emit no gasses during normal operation. They can be used safely near sensitive equipment or people.

PRODUCT SPECIFICATIONS
  • Voltage: 6.0V
  • Amp Hours: 400Ah
DIMENSIONS & WEIGHT
  • Length: 11.6 in (295 mm)
  • Width: 7.1 in (180 mm)
  • Height: 16.9 in (428 mm)
  • Weight: 119.5 lbs (54.2 kg)
APPLICATIONS
  • Backup Power
  • Electric Vehicles
  • Marine
  • Recreational Vehicles
  • Solar

Purchase RELiON Power

Find an authorized RELiON distributor or dealer in your area.

Where To Buy

DATA SHEET

DOWNLOAD PDF

Electrical Specifications

Nominal Voltage 6 V
Capacity @ C100 424 Ah
Capacity @ C20 400 Ah
Capacity @ C10 360 Ah
Capacity @ C5 331 Ah
Capacity @ 75A 270 min
Capacity @ 25A 915 min
Energy @ C100 2544 Wh
Internal Resistance 1.69 mΩ
Short Circuit Current 4500 A
Self Discharge <3% per Month

Mechanical & Physical Specifications

Dimensions (L x W x H) 11.61 x 7.09 x 16.9” 295 x 180 x 428 mm
Weight 119.5 lbs (54.2 kg)
Terminal Type AP & 5/16” Stud
Terminal Torque AP 44 - 62 in-lbs (5 - 7 N-m)
Terminal Torque STUD 120 - 180 in-lbs (14 - 20 N-m)
Battery Type VRLA
Case Material Polypropolyene
Handle Rope with plastic grip

Charge Specifications

Recommended Charge Current 40 - 80 A
Maximum Charge Current 100 A

Temperature Specifications

Operation/Storage Temperature Range -4 - 122 ºF (-20 - 50 ºC)

Compliance Specifications

Certifications UL1989
Shipping Classification UN 2800, CLASS 8

Charge Storage (12 V System)

Bulk/Absorption 14.4 V - 14.7 V
Float 13.6 - 13.8 V

Charge Storage (24 V System)

Bulk/Absorption 28.8 V - 29.4 V
Float 27.2 - 27.6 V

Charge Storage (36 V System)

Bulk/Absorption 43.2 V - 44.1 V
Float 40.8 - 41.4 V

Charge Storage (48 V System)

Bulk/Absorption 57.6 V - 58.8 V
Float 54.4 - 55.2 V

Charge Temperature Compensation

Cold Temperature Charging +2.8 mV/cell/ºF +5 mV/cell/ºC
Hot Temperature Charging -2.8 mV/cell/ºF -5 mV/cell/ºC

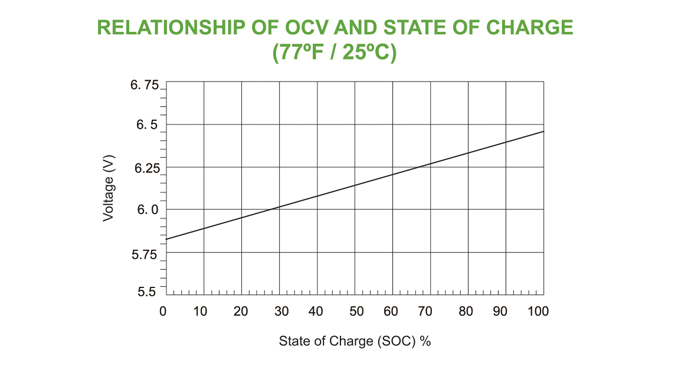

Performance Characteristics

graph
graph
graph
graph
graph
graph
