This premium performance 12V dry series battery is equipped with an M8 terminal type and has more capacity than traditional lead-acid batteries, even in extreme conditions. The REV-27-105 battery meets UL and CE certifications.

All RELiON R4000 batteries have installation flexibility. These non-hazardous, clean batteries emit no gasses during normal operation. They can be used safely near sensitive equipment or people.

PRODUCT SPECIFICATIONS
  • Voltage: 12.0V
  • Amp Hours: 105Ah
DIMENSIONS & WEIGHT
  • Length: 12 in (306 mm)
  • Width: 6.6 in (168 mm)
  • Height: 8.4 in (214 mm)
  • Weight: 59.7 lbs (27.1 kg)
APPLICATIONS
  • Backup Power
  • Electric Vehicles
  • Marine
  • Recreational Vehicles
  • Solar

Purchase RELiON Power

Find an authorized RELiON distributor or dealer in your area.

Where To Buy

DATA SHEET

DOWNLOAD PDF

Electrical Specifications

Nominal Voltage 12 V
Capacity @ C100 110 Ah
Capacity @ C20 105 Ah
Capacity @ C10 99 Ah
Capacity @ C5 89 Ah
Capacity @ 75A 50 min
Capacity @ 25A 204 min
Energy @ C100 1320 Wh
Internal Resistance 5.72 mΩ
Short Circuit Current 2600 A
Self Discharge <3% per Month

Mechanical & Physical Specifications

Dimensions 12.1 x 6.6 x 8.4” 306 x 168 x 214 mm
Weight 59.8 lbs (27.1 kg)
Terminal Type M8
Terminal Torque 85 - 95 in-lbs (10 - 11 N-m)
Battery Type VRLA
Case Material ABS
Handle Plastic

Charge Specifications

Recommended Charge Current 11 - 21 A
Maximum Charge Current 26 A

Temperature Specifications

Operation/Storage Temperature Range -4 - 122 ºF (-20 - 50 ºC)

Compliance Specifications

Certifications UL1989
Shipping Classification UN 2800, CLASS 8

Charge Voltages (12 V Systems)

Bulk/Absorption 14.4 V - 14.7 V
Float 13.6 - 13.8 V

Charge Voltages (24 V Systems)

Bulk/Absorption 28.8 V - 29.4 V
Float 27.2 - 27.6 V

Charge Voltages (36 V Systems)

Bulk/Absorption 3.2 V - 44.1 V
Float 40.8 - 41.4 V

Charge Voltages (48 V Systems)

Bulk/Absorption 57.6 V - 58.8 V
Float 54.4 - 55.2 V

Charge Temperature Compensation

Cold Temperature Charging +2.8 mV/cell/ºF +5 mV/cell/ºC
Hot Temperature Charging -2.8 mV/cell/ºF -5 mV/cell/ºC

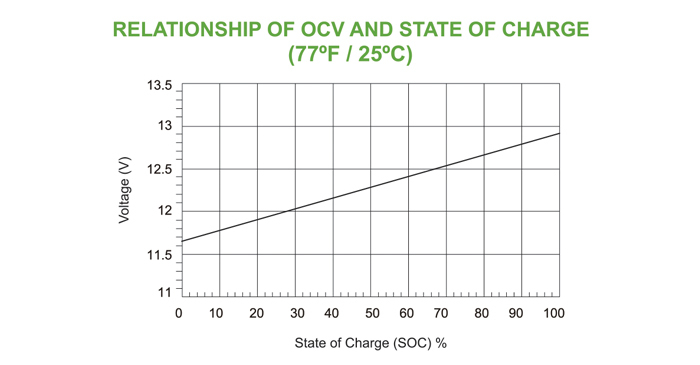

PERFORMANCE CHARACTERISTICS

graph
graph
graph
graph
graph
graph
