PRICE: $2,475.95

*This product is temporarily unavailable for online purchase. Please contact us to complete your order.

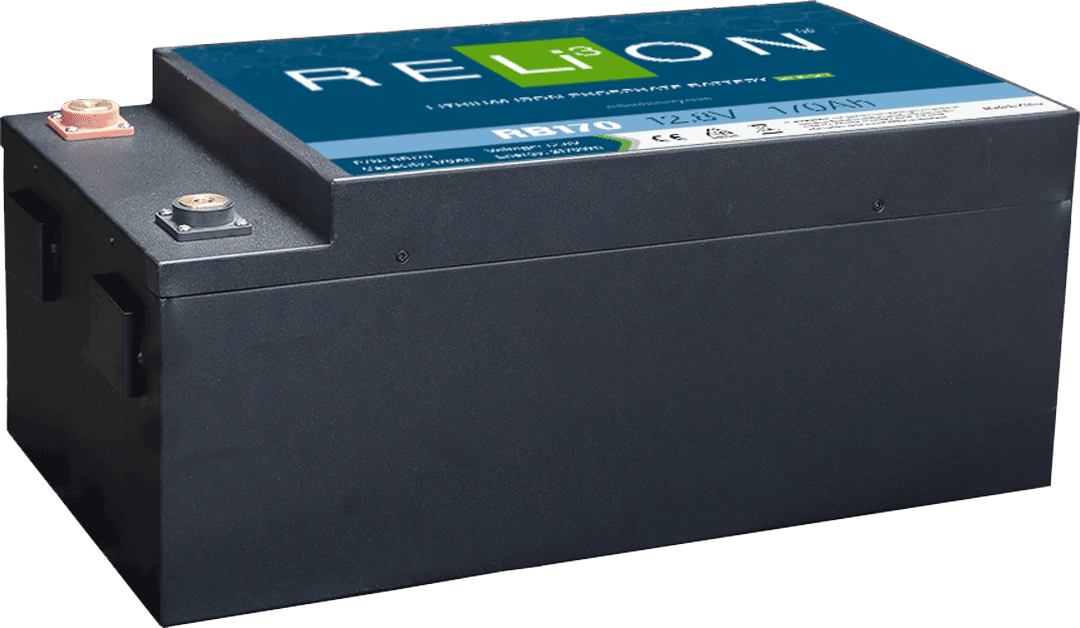

This 12V 170Ah lithium iron phosphate battery is perfect in solar and renewable energy applications. It maintains consistent power and is equipped with an M8 terminal type and built-in overcharge protection. The RB24V100 battery meets UL, CE and IEC certifications.

All RELiON LiFePO4 solar batteries have installation flexibility, fast-charging capabilities and are maintenance free.

DATA SHEET

DOWNLOAD PDF

Electrical Specifications

Nominal Voltage 12.8 V
Nominal Capacity 170 Ah
Capacity @ 25A 408 min
Energy 2176 Wh
Resistance ≤55 mΩ @ 50% SOC
Efficiency 99%
Self Discharge <3% per Month
Maximum Modules in Series 1 (Single Use)

Mechanical Specifications

Dimensions (L x W x H) 19.5 x 10.6 x 7.9” 495 x 268 x 201.5 mm
Weight 66.1 lbs (30 kg)
Terminal Type M8 X 1.25
Terminal Torque 80 - 100 in-lbs (9 - 11 N-m)
Case Material Steel Case
Enclosure Protection IP56
Cell Type - Chemistry Cylindrical - LiFePO4

Discharge Specifications

Maximum Continuous Discharge Current 200 A
Peak Discharge Current 250 A (≤5 s)
BMS Discharge Current Cut-Off 480 A (±50 A) (6 ±3 ms)
Recommended Low Voltage Disconnect 11 V
BMS Discharge Voltage Cut-Off 8 V (2.0 ±0.1 vpc) (100 ±50 ms)
Reconnect Voltage 10 V (2.5 ±0.1 vpc)
Short Circuit Protection 400-800 μs

Charge Specifications

Recommended Charge Current 34 A
Maximum Charge Current 100 A
Recommended Charge Voltage 14.2 V - 14.6 V
BMS Charge Voltage Cut-Off 15.2 V (3.8 ±0.05 vpc) (1 ±0.5 s)
Reconnect Voltage 14.4 V (3.6 ±0.05 vpc)
Balancing Voltage 14.4 V (3.6 ±0.025 vpc)

Temperature Specifications

Discharge Temperature -4 to 140 oF (-20 to 60 ºC)
Charge Temperature 32 to 113 oF (0 to 45 ºC)
Storage Temperature 23 to 95 oF (-5 to 35 ºC)
BMS High Temperature Cut-Off 149 oF (65 ºC)
Reconnect Temperature 122 oF (50 ºC)º

Compliance Specifications

Certifications CE (battery) UL1642 & IEC62133 (cells)
Shipping Classification UN 3480, CLASS 9
