PRICE: $131.95

Earth Week Celebration Sale: Save 10% on Our Eco-Friendly Batteries! Use Promo Code EARTH10 at Checkout

Earth Week Celebration Sale: Save 10% on Our Eco-Friendly Batteries! Use Promo Code EARTH10 at Checkout

FREE GROUND SHIPPING (Usually ships within 1 - 2 business days.)

* Within the continental U.S. only

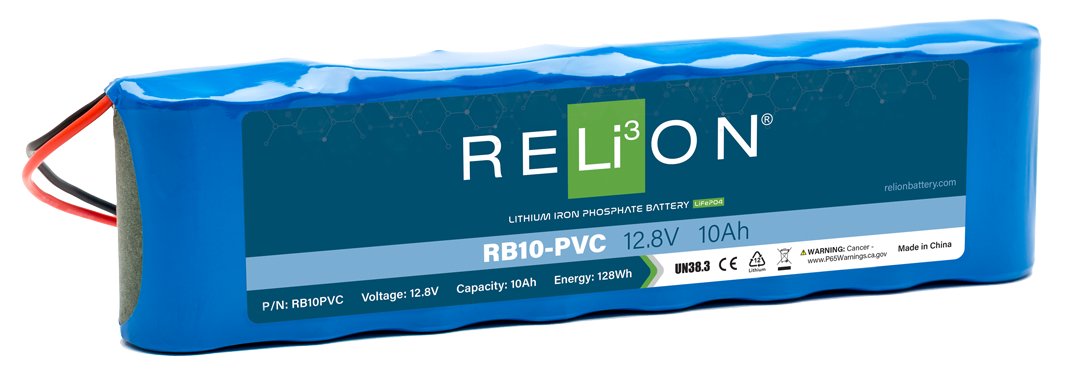

This lightweight PVC battery has wire leads, built-in BMS and temperature control. Our 12V 10Ah lithium iron phosphate batteries also feature a built-in battery management system (BMS). All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.

PRODUCT SPECIFICATIONS
  • Voltage: 12.8V
  • Amp Hours: 10Ah
DIMENSIONS & WEIGHT
  • Length: 10.3 in (262 mm)
  • Width: 1.4 in (36 mm)
  • Height: 3 in (77 mm)
  • Weight: 4 lbs (1.8 kg)
APPLICATIONS
  • Solar

PRODUCT REVIEWS

There are no reviews for this product yet.

Solar Rover Using RB10PVC

How to Read RELiON's Data Sheets

We know that Data Sheets can sometimes be confusing, overwhelming, or difficult to decipher. In this Tech Video, one of our experts breaks down how to easily read our Data Sheets.

Watch Video

DATA SHEET

DOWNLOAD PDF

Electrical Specifications

Nominal Voltage 12.8 V
Nominal Capacity 10 Ah
Capacity @ 25A 24 min
Energy 128 Wh
Resistance ≤90 mΩ @ 50% SOC
Efficiency 99%
Self Discharge <3% per Month

Mechanical Specifications

Dimensions (L x W x H) 10.3 x 1.4 x 3.0” 262 x 36 x 77 mm
Weight 4 lbs (1.8 kg)
Terminal Type Wire Leads (250-300 mm)
Case Material PVC
Cell Type Cylindrical
Chemistry LiFePO4

Discharge Specifications

Maximum Continuous Discharge Current 10 A
Peak Discharge Current 20 A (7.5 s ±2.5 s)
BMS Discharge Current Cut-Off 30 A ±5 A (10 ±5 ms)
Recommended Low Voltage Disconnect 11 V
BMS Discharge Voltage Cut-Off 8 V (2.0 ±0.08 vpc) (100 ±50 ms)
Reconnect Voltage 10 V (2.5 ±0.1 vpc)
Short Circuit Protection 200-500 µs

Charge Specifications

Recommended Charge Current .5 - 5 A
Maximum Charge Current 10 A
Charge Current 32ºF to 14ºF (0 to -10 ºC) ≤0.1 C
Charge Current -4ºF to 14ºF (-20 to -10 ºC) ≤0.05 C
Recommended Charge Voltage 14.2 V - 14.6 V
BMS Charge Voltage Cut-Off 15.6 V (3.9 ±0.025 vpc)
(1.0 ±0.5 s)
Reconnect Voltage 15.2 V

Temperature Specifications

Discharge Temperature -4 to 140 ºF (-20 to 60 ºC)
Charge Temperature* -4 to 113 ºF (-20 to 45 ºC)
Storage Temperature 23 to 95 ºF (-5 to 35 ºC)
*Refer to charge currents below 0°C (32°F)

Compliance Specifications

Certifications CE (battery)
UN38.3 (battery)
UL1642 & IEC62133 (cells)
Shipping Classification UN 3480, CLASS 9

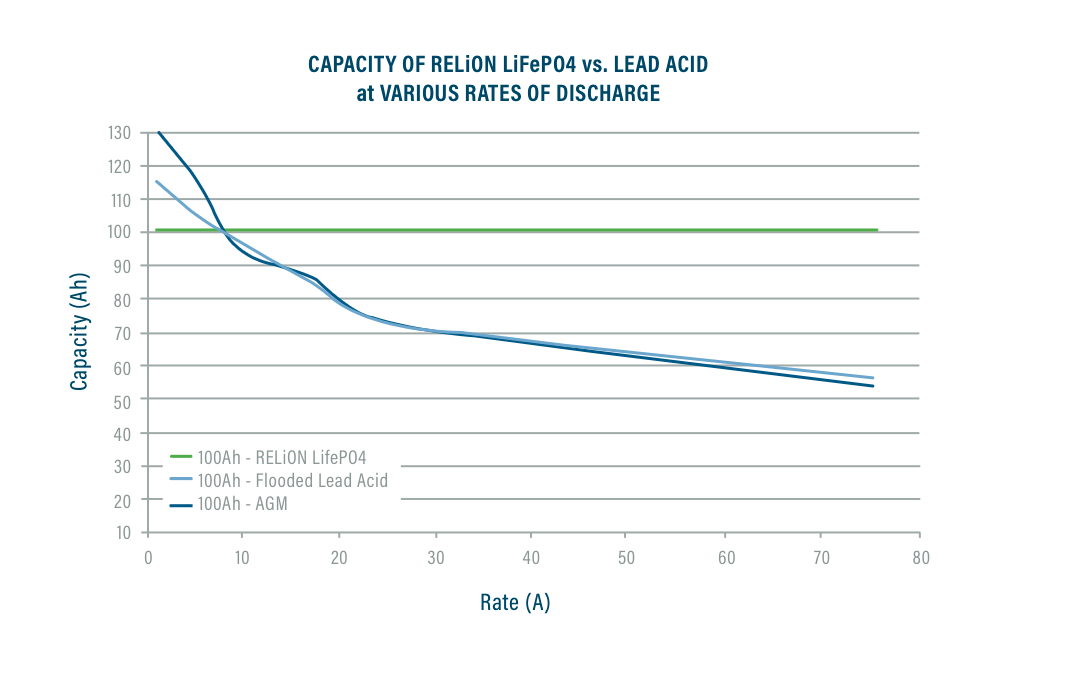

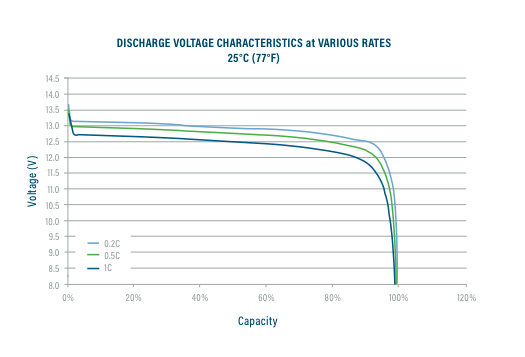

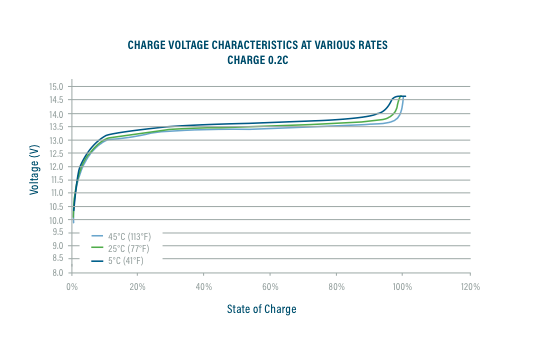

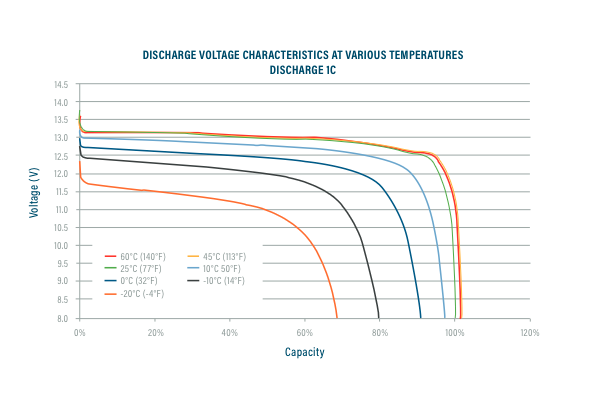

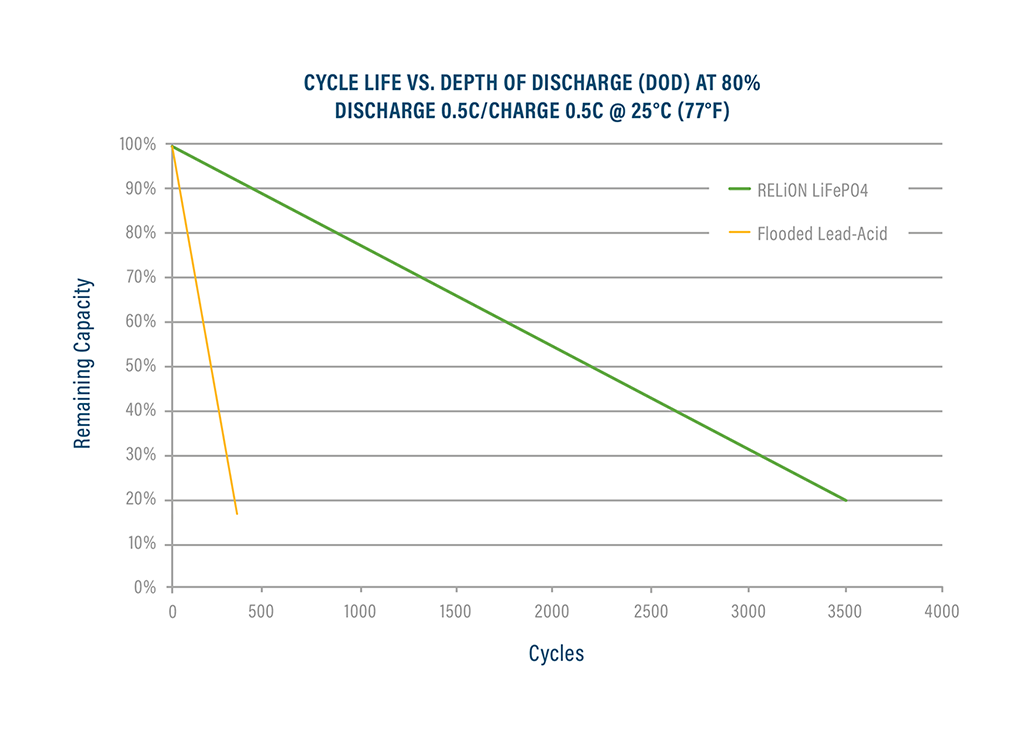

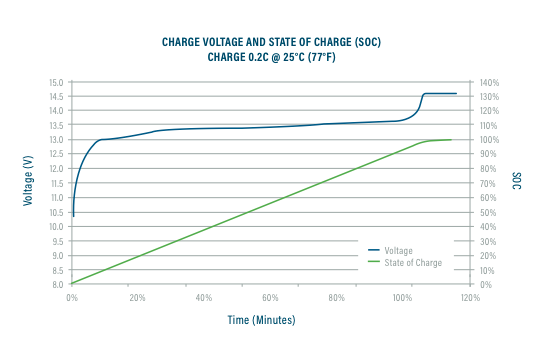

PERFORMANCE CHARACTERISTICS

graph
graph
graph
graph
graph
graph
