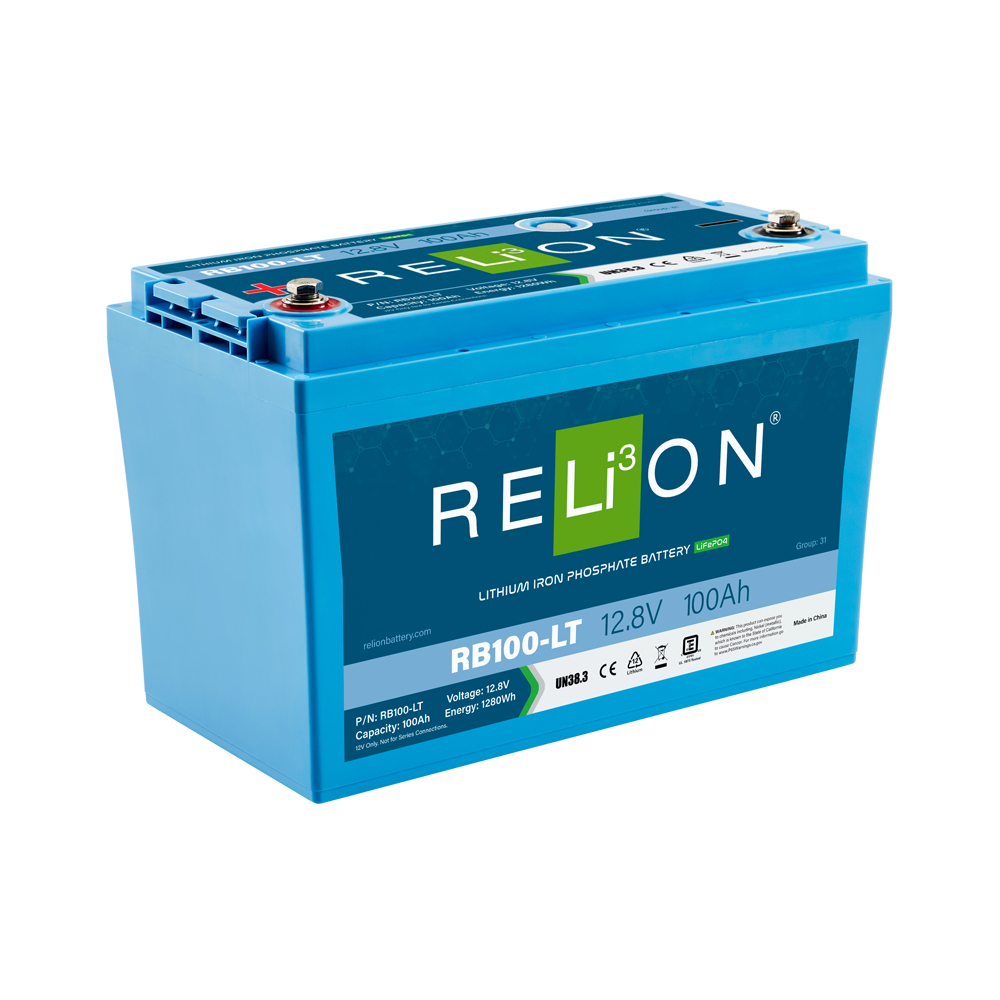

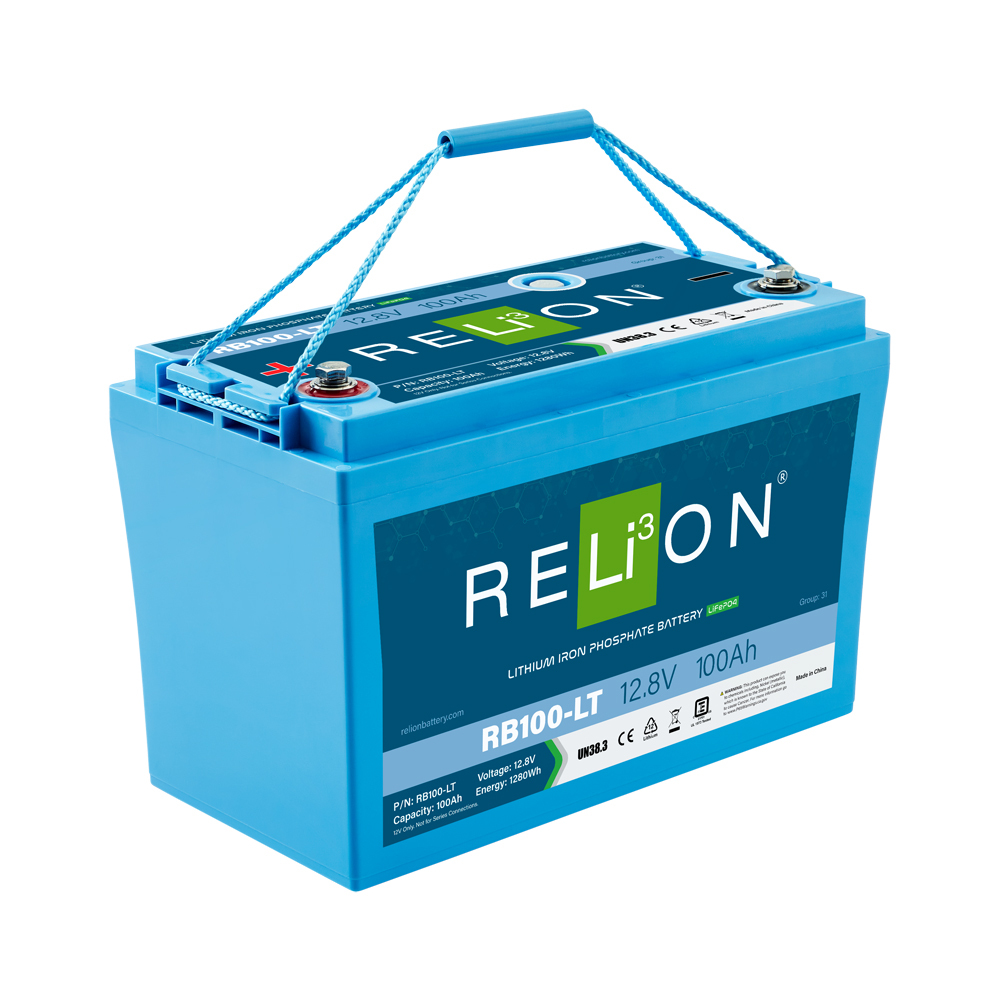

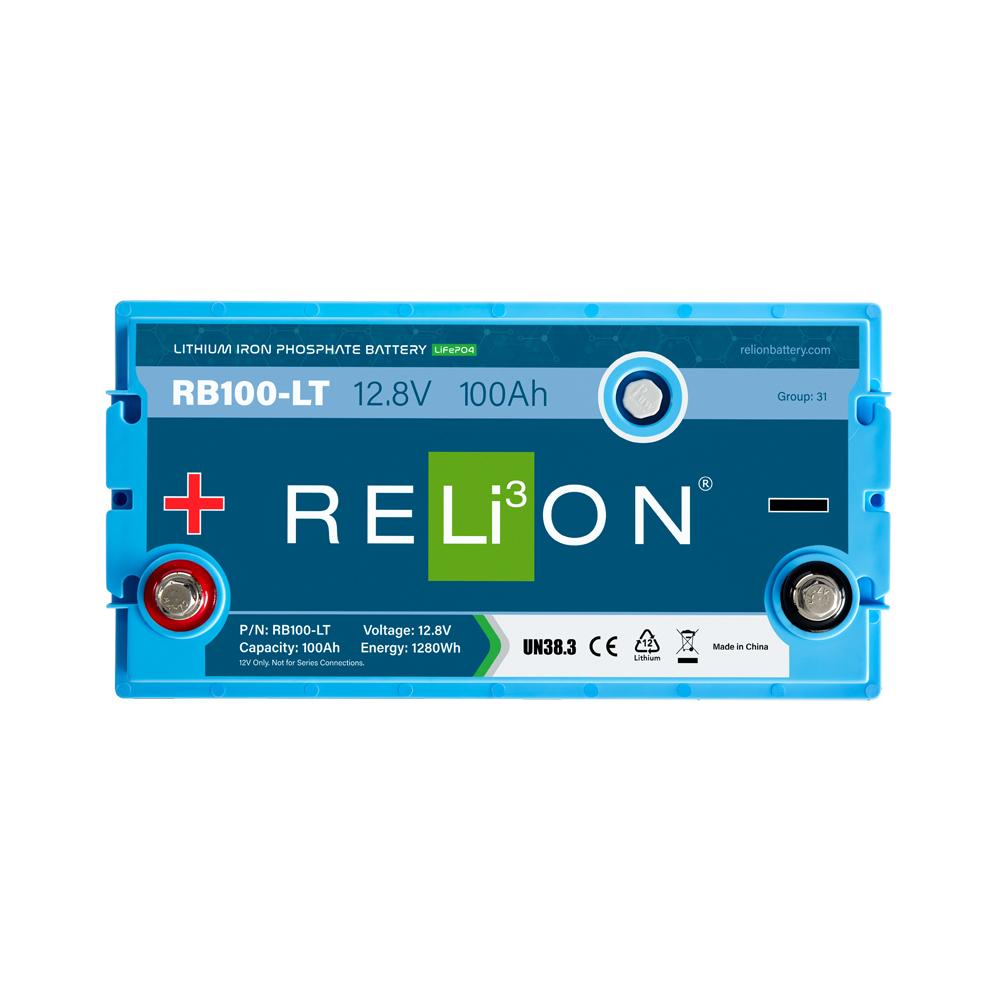

RB100-LT: Cold Weather Lithium Battery
12V 100Ah Lithium Deep Cycle Battery
The RB100-LT is a 12V 100Ah lithium battery and is part of RELiON’s Low-Temperature Series. This lithium iron phosphate battery is specially designed for cold weather performance. RELiON’s LT Series batteries can safely charge at temperatures down to -20°C (-4°F) using a standard charger. The system features proprietary technology which draws power from the charger itself, requiring no additional components. Now improved protection with an IP67 ingress protection rating, which completely repels dust and resists water ingress for up to 30 minutes submerged at 1 meter.
The entire process of heating and charging with the LT Series is completely seamless. Simply plug the battery into the regular lithium charger and the internal heating and monitoring system takes care of the rest. Because it takes time to heat the cells, the charging process in below-freezing temperatures could take a little longer.
The Low-Temperature Series battery has the same size and performance as other RELiON batteries but can safely charge when temperatures drop as low as -20°C using a standard charger. The RB100-LT is an ideal choice for use in RVs, off-grid solar, electric vehicles, and in any application where charging in colder temperatures is necessary.
PRODUCT SPECIFICATIONS
- Voltage: 12.8V
- Amp Hours: 100Ah
DIMENSIONS & WEIGHT
- Length: 13 in (329 mm)
- Width: 6.8 in (172 mm)
- Height: 8.4 in (214 mm)
- Weight: 27.9 lbs (12.64 kg)
APPLICATIONS
- Backup Power
- Electric Vehicles
- Marine
- Recreational Vehicles
- Solar
PRODUCT REVIEWS
DATA SHEET
DOWNLOAD PDFELECTRICAL SPECIFICATIONS |
|
|---|---|
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 100 Ah |
| Capacity @ 25 A | 240 min |
| Energy | 1280 Wh |
| Resistance | ≤30 mΩ @ 50% SOC |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Maximum Batteries Connected in Series | 1 (Single-Use) |
MECHANICAL SPECIFICATIONS |
|
|---|---|
| Dimensions (L x W x H) | 13 x 6.8 x 8.4” (329 x 172 x 214 mm) |
| Weight | 27.9 lbs (12.64 kg) |
| Terminal Type | M8 x 1.25 |
| Terminal Torque | 80 - 100 in-lbs (9 - 11 N-m) |
| Case Material | ABS |
| Enclosure Protection | IP67 |
| Cell Type - Chemistry | Cylindrical - LiFePO4 |
DISCHARGE SPECIFICATIONS |
|
|---|---|
| Maximum Continuous Discharge Current | 100 A |
| Peak Discharge Current | 200 A (7.5 s ±2.5 s) |
| Discharge Over-Current Protection | 280 A ±50 A (32 ±10 ms) |
| Recommended Low Voltage Disconnect | 11.0 V |
| Discharge Under-Voltage Protection | 9.2 V (2.3 ±0.08 vpc) (4.7 ±1 s) |
| Reconnect Voltage | 10.0 V (2.5 ±0.1 vpc) |
| Short Circuit Protection Response Time | 200-600 μs |
CHARGE SPECIFICATIONS |
|
|---|---|
| Recommended Charge Current | 5 A - 50 A |
| Maximum Continuous Charge Current | 100 A |
| Recommended Charge Voltage | 14.2 V - 14.6 V |
| BMS Charge Voltage Cut-Off | 15.4 V (3.85 ±0.025 vpc) (1000 ±200 ms) |
| Reconnect Voltage | 14.6 V (3.65 ±0.05 vpc) |
| Balancing Voltage | 14.4 V (3.6 ±0.025 vpc) |
TEMPERATURE SPECIFICATIONS |
|
|---|---|
| Discharge Temperature | -4 to 140 ºF (-20 to 60 ºC) |
| Charge Temperature | -4 to 113 ºF (-20 to 45 ºC) |
| Recommended Storage Temperature | 23 to 95 ºF (-5 to 35 ºC) |
| BMS High Temperature Cut-Off - Discharge | 185 ºF (85 ºC) |
| BMS High Temperature Cut-Off - Charge | 140 ºF (60 ºC) |
| Reconnect Temperature | 122 ºF (50 ºC) |
HEATING ELEMENT SPECIFICATIONS |
|
|---|---|
| Heating Temperature Range | -4 to 41 ºF (-20 to 5 ºC) |
| Heating Time | Approximately 1 hr @ 10 A |
COMPLIANCE SPECIFICATIONS |
|
|---|---|
| Certifications | UN38.3 (battery) & CE (battery) UKCA |
| UL1642 (cells) (File# MH64523) | |
| IEC62133 (cells) | |
| Shipping Classification | UN 3480, CLASS 9 |
Typical Lithium Iron Phosphate Characteristics

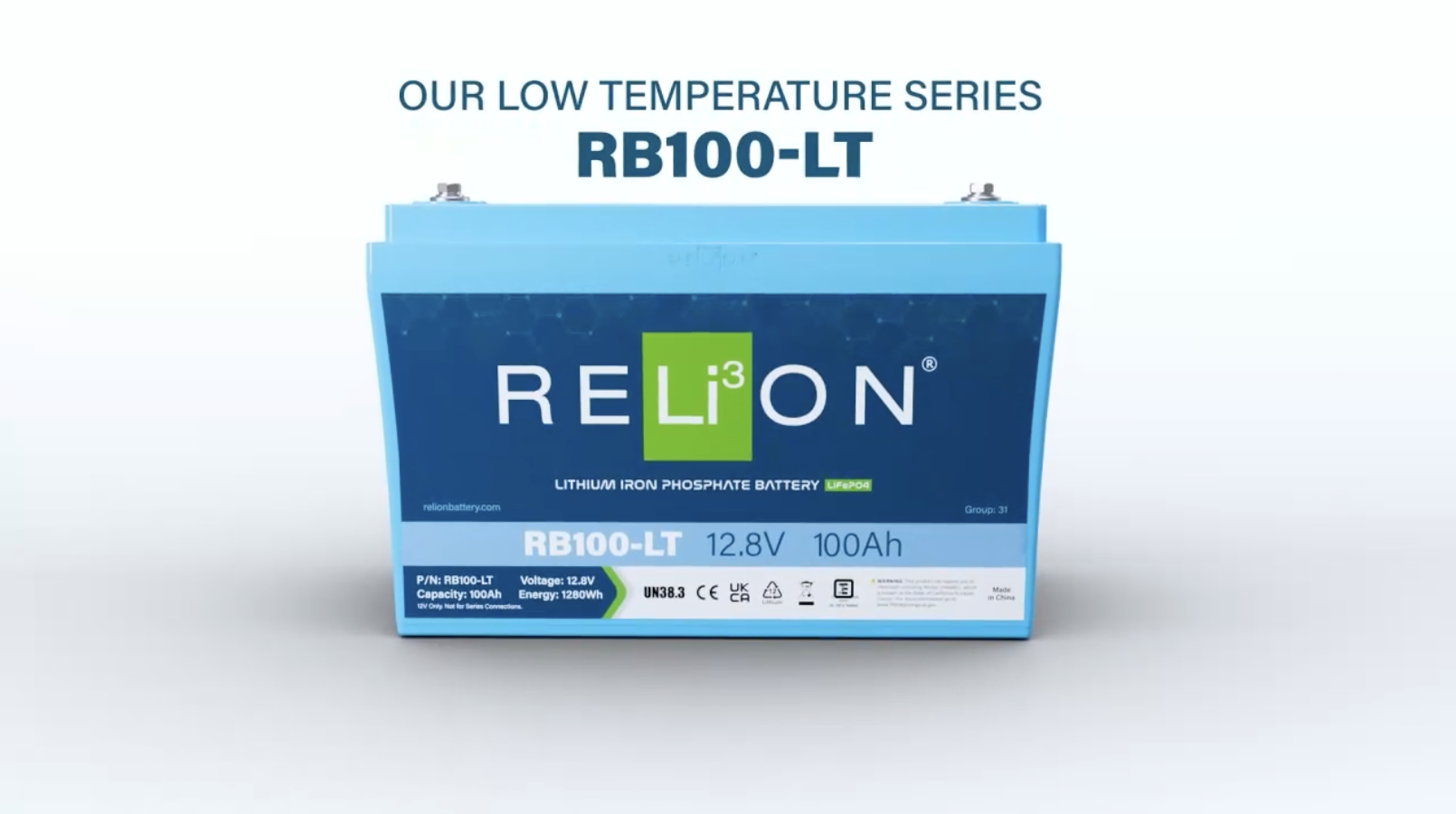

Tech Video | RELiON's Low-Temperature Series
Frequently Asked Questions
Customer Success: RELiON RB100-LT Battery System Provides Reliable Power in Extreme Colorado Cold
Born and raised in Wisconsin, Jason Bucholtz was no stranger to the extreme cold temperatures he encountered in his new home in Colorado, but he had never before had to find a way to deliver reliable power in below freezing temperatures to a remote cabin miles from the nearest utility connection. In addition to his permanent residence in Denver, Jason owns a rustic cabin about an hour west of Denver on the outskirts of the secluded, densely forested, three hundred person town of Empire, Colorado. Jason’s cabin is so remote that he relies on a snow vehicle just to reach his property, particularly as the nearby logging roads are not maintained.
Read More
I’ve been using this battery for approximately a year now and it has performed flawlessly. I continuously use it as an auxiliary battery in my Subaru, charged off the alternator with a 40A RedArc charger; I intermittently charge it every few days so it isn’t just trickle charging. I use the battery daily to power a dash/parking camera and auxiliary lights. I’ve used the battery from 0-95F without interruption; from frigid temperatures it does take a while for the battery to reach a safe charging temperature, but that is expected. The BMS works as it should - the only time I’ve actually experienced it was the battery cutting off after grounding a live wire with a wrench, but unplugging it and waiting about 30s reset it. I used the battery to power an electric cooler continuously for a month and it worked perfectly. I originally bought this battery because Relion was one of the few companies that sold a lithium battery with an internal heating element. I am so glad I did because it’s just totally solid and I’ve actually bought a smaller Relion battery since. I don’t know why more people don’t know about them. 10/10 recommend.
Ive been running this a red arc and for over a year, its charging perfect in 100 degree heat and now in winter in 0 degree conditions no problem. it is my aux battery on my 97 fzj 80 overland land cruiser.
While I have only tested my 2xRB100-LT batteries in the real world for one 4,000 mile trip, they have performed exactly as stated and expected, and we no longer have to worry about having enough DC power to enjoy our off grid stopovers. We can stay anywhere now and not worry about whether we'll make it to morning running our usual motorhome loads fridge, furnace, and whatever else we need for our relaxation and comfort. Pricey up front, but over the long haul, these batteries are worth every penny for our off grid power supply peace of mind, and they should be more economical than their lead acid counterparts by their charge/discharge cycle longevity. I managed to shoehorn them into the battery tray of a 2018 Navion 24V with a minor modification. I'm very pleased with this product, and would recommend them to anyone who may occasionally camp in sub-freezing weather which they handle effortlessly by design. Kudos to Relion for their product innovation.
The new batteries have relieved me of many worries. Turns out I could use two more. They just fit in a Navion 24J Sprinter.
