PRICE: $1,328.95

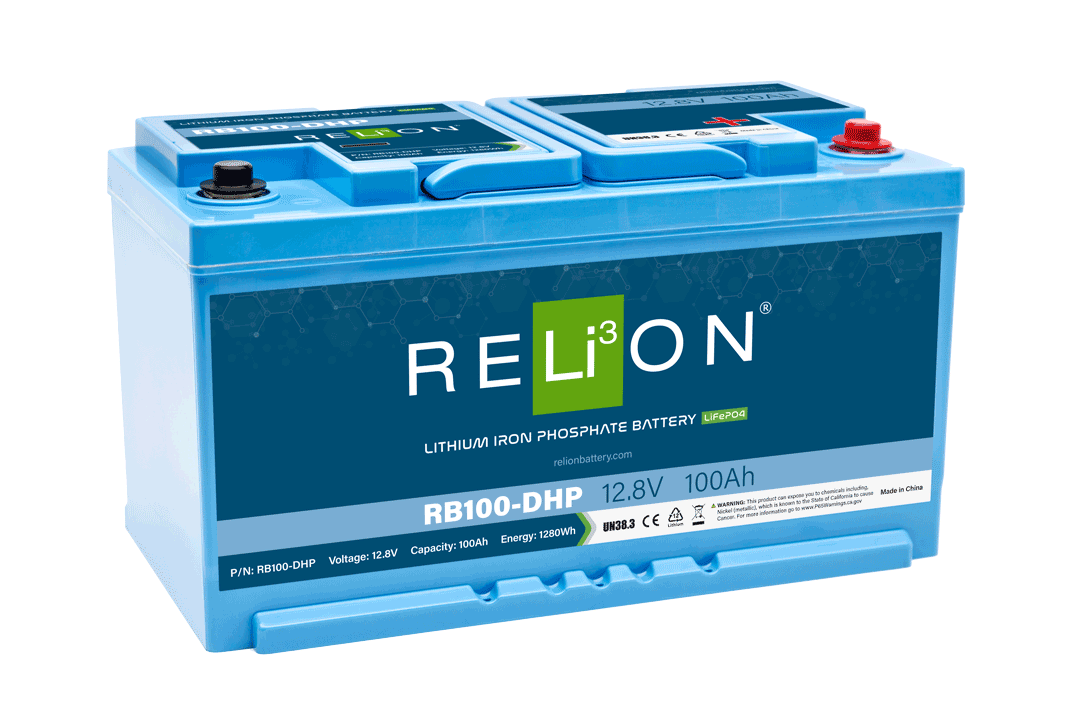

This high-performance 12V DIN 100Ah lithium iron phosphate battery is part of the RELiON HP Series (High Peak Performance) of batteries. It is a safer, a more lightweight alternative to lead-acid in various marine applications.

At 30 lbs, this battery is less than half the weight of the lead-acid or AGM equivalent, helping to fight against the drag cause by heavier options. It maintains a consistent power and is equipped with handles for carrying, an M8 terminal type and and a built-in battery management system (BMS). The RB100-DHP battery meets UL, CE and IEC certifications.

All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.

PRODUCT SPECIFICATIONS
  • Voltage: 12.8V
  • Amp Hours: 100Ah
DIMENSIONS & WEIGHT
  • Length: 13.2 in (335 mm)
  • Width: 6.9 in (174 mm)
  • Height: 7.5 in (191 mm)
  • Weight: 30.2 lbs (13.7 kg)
APPLICATIONS
  • Marine

DATA SHEET

DOWNLOAD PDF

Electrical Specifications

Nominal Voltage 12.8 V
Nominal Capacity 100 Ah
Capacity @ 25A 240 min
Energy 1280 Wh
Resistance ≤30 mΩ @ 50% SOC
Efficiency 99%
Self Discharge <3% per Month
Maximum Modules in Series 1 (Single Use)

Mechanical Specifications

Dimensions (L x W x H) 13.2 x 6.9 x 7.5" 335 x 174 x 191 mm
Weight 30 lbs (13.7 kg)
Terminal Type M8
Terminal Torque 80 - 100 in-lbs (9 - 11 N-m)
Case Material ABS
Enclosure Protection IP56
Cell Type - Chemistry Cylindrical LiFePO4

Discharge Specifications

Maximum Continuous Discharge Current 100 A
Peak Discharge Current 800 A (2 s)
BMS Discharge Current Cut-Off 1000 A ±100 A (2.2 ±1 ms)
Recommended Low Voltage Disconnect 11 V
BMS Discharge Voltage Cut-Off 9.2 V (2.3 ±0.08 vpc) (4.2 ±0.5 s)
Reconnect Voltage 10 V (2.5 ±0.1 vpc)
Short Circuit Protection 200-600 µs

Charge Specifications

Recommended Charge Current 50 A
Maximum Charge Current 100 A
Recommended Charge Voltage 14.2 V - 14.6 V
BMS Charge Voltage Cut-Off 15.4 V (3.85 ±0.025 vpc)
(1 ±0.2 s)
Reconnect Voltage 14.6 V (3.65 ±0.05 vpc)
Balancing Voltage 14.4 V (3.6 ±0.025 vpc)

Temperature Specifications

Discharge Temperature -4 to 140 ºF (-20 to 60 ºC)
Charge Temperature 32 to 113 ºF (0 to 45 ºC)
Storage Temperature 23 to 95 ºF (-5 to 35 ºC)
BMS High Temperature Cut-Off 176 ºF (80 ºC)
Reconnect Temperature 122 ºF (50 ºC)

Compliance Specifications

Certifications CE (battery)
UN38.3 (battery)
UL1642 & IEC62133 (cells)
Shipping Classification UN 3480, CLASS 9

PERFORMANCE CHARACTERISTICS

graph
graph
graph
graph
graph
graph
