RB100-D

12V 100Ah
Deep Cycle Lithium Battery
European DIN Size

RB100-D

12V 100Ah
Deep Cycle Lithium Battery
European DIN Size

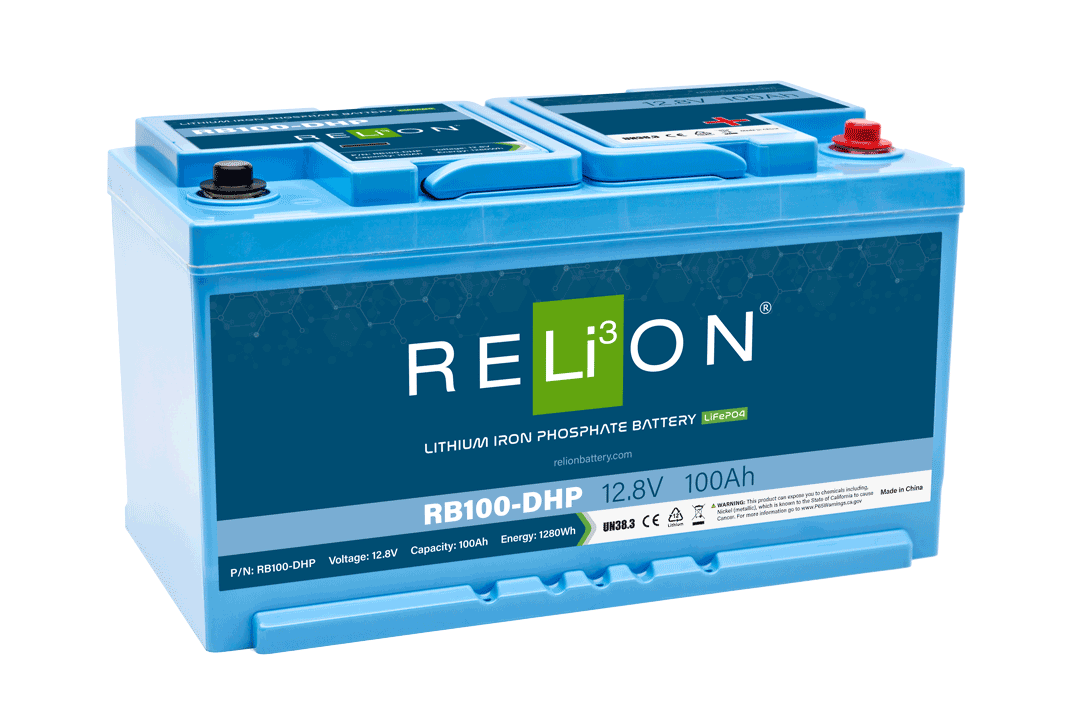

The RB100-D is a lithium iron phosphate battery in a European DIN size. Weighing only 30 pounds, this deep cycle battery is a safer, lightweight alternative to lead-acid and AGM and works great in marine, RV, solar and floor machine applications among others.

$899.95

FIND A DEALER

Seach our global network of RELiON dealers for sales or service

DEALER LOCATOR
Us Flag Small

ENGINEERED IN THE USA

United States Of America White 230216 103954

US-BASED SUPPORT

Warranty White 230216 103954

10 YEAR WARRANTY

Features

Temperature Tolerant

Lithium batteries can handle a wide variety of conditions and are even 2.5x more efficient at low temperatures than lead-acid while being able to safely operate up to 149°F (65°C).

Lightweight

RELiON lithium batteries provide more power than lead-acid batteries and are typically half the weight. Boosting both performance and agility on the water.

Constant Power

Full power available throughout discharge. Voltage does not drop like lead-acid.

Eco-Friendly & Safe

RELiON lithium batteries are the ultimate clean energy. No gassing, no fumes, and no pollution. Enjoy reliable power, while protecting the environment, using these non-hazardous batteries.

Maintenance Free

Plug, play, and charge. No watering, no corrosion.

Specifications

DOWNLOAD PDF

Electrical Specifications

Nominal Voltage 12.8 V
Nominal Capacity 100 Ah
Capacity @ 25 A 240 min
Energy 1280 Wh
Resistance ≤30 mΩ @ 50% SOC
Efficiency 99%
Self Discharge <3% per Month
Maximum Batteries Connected in Series 4

Mechanical Specifications

Dimensions (L x W x H) 13.2 x 6.9 x 7.5" (335 x 174 x 191 mm)
Weight 30.2 lbs (13.7 kg)
Terminal Type M8 x 1.25
Terminal Torque 80 - 100 in-lbs (9 - 11 N-m)
Case Material ABS
Enclosure Protection IP66
Cell Type - Chemistry Cylindrical LiFePO4

Discharge Specifications

Maximum Continuous Discharge Current 100 A
Peak Discharge Current 200 A (7.5 s ±2.5 s)
Discharge Over-Current Protection 280 A ±50 A (9 ±4 ms)
Recommended Low Voltage Disconnect 11.0 V
Discharge Under-Voltage Protection 8.0 V (2.0 ±0.08 vpc) (140 ±60 ms)
Reconnect Voltage 9.2 V (2.3 ±0.1 vpc)
Short Circuit Protection Response Time 200-600 µs

Charge Specifications

Recommended Charge Current 5 A - 50 A
Maximum Continuous Charge Current 100 A
Charge Current 32°F to 14°F (0 to -10°C) ≤0.1 C (10 A)
Charge Current 14°F to -4°F (-10 to -20°C) ≤0.05 C (5 A)
Recommended Charge Voltage 14.2 V - 14.6 V
BMS Charge Voltage Cut-Off 15.6 V (3.9 ±0.025 vpc)
(1.1 ±0.4 s)
Reconnect Voltage 15.2 V (3.8 ±0.05 vpc)
Balancing Voltage 14.4 V (3.6 ±0.025 vpc)

Temperature Specifications

Discharge Temperature -4 to 140 ºF (-20 to 60 ºC)
Charge Temperature* -4 to 113 ºF (-20 to 45 ºC)
Recommended Storage Temperature 23 to 95 ºF (-5 to 35 ºC)
BMS High Temperature Cut-Off 176 ºF (80 ºC)
Reconnect Temperature 122 ºF (50 ºC)
*Refer to charge currents below 32°F (0°C)

Compliance Specifications

Certifications UKCA & CE (battery)
UN38.3 (battery)
UL1642 (cells) (File# MH64523)
IEC62133 (cells)
Shipping Classifications UN 3480, CLASS 9

TYPICAL LITHIUM IRON PHOSPHATE CHARACTERISTICS

Charge Voltage Char Chart 12 V graph
Charge Voltage Soc Chart 12 V graph
Discharge Voltage At Various Rates 12 V graph
Discharge Voltage Chart 12 V graph
