The vital part to the successful operation of a wind turbine pitch system is the system’s backup power. As a wind farm operator, you want to be assured that your backup power source is going to pitch your blades successfully when necessary. There’s no room for failure. That’s why a reliable power source, like RELiON’s wind turbine lithium battery, is crucial to rotate the blades during an emergency shut-down situation.

https://ceb8596f236225acd007-8e95328c173a04ed694af83ee4e24c15.ssl.cf5.rackcdn.com/images/product/_zPattern/RB10PC-2019.png

Reliable Power for Your Wind Turbine Pitch System

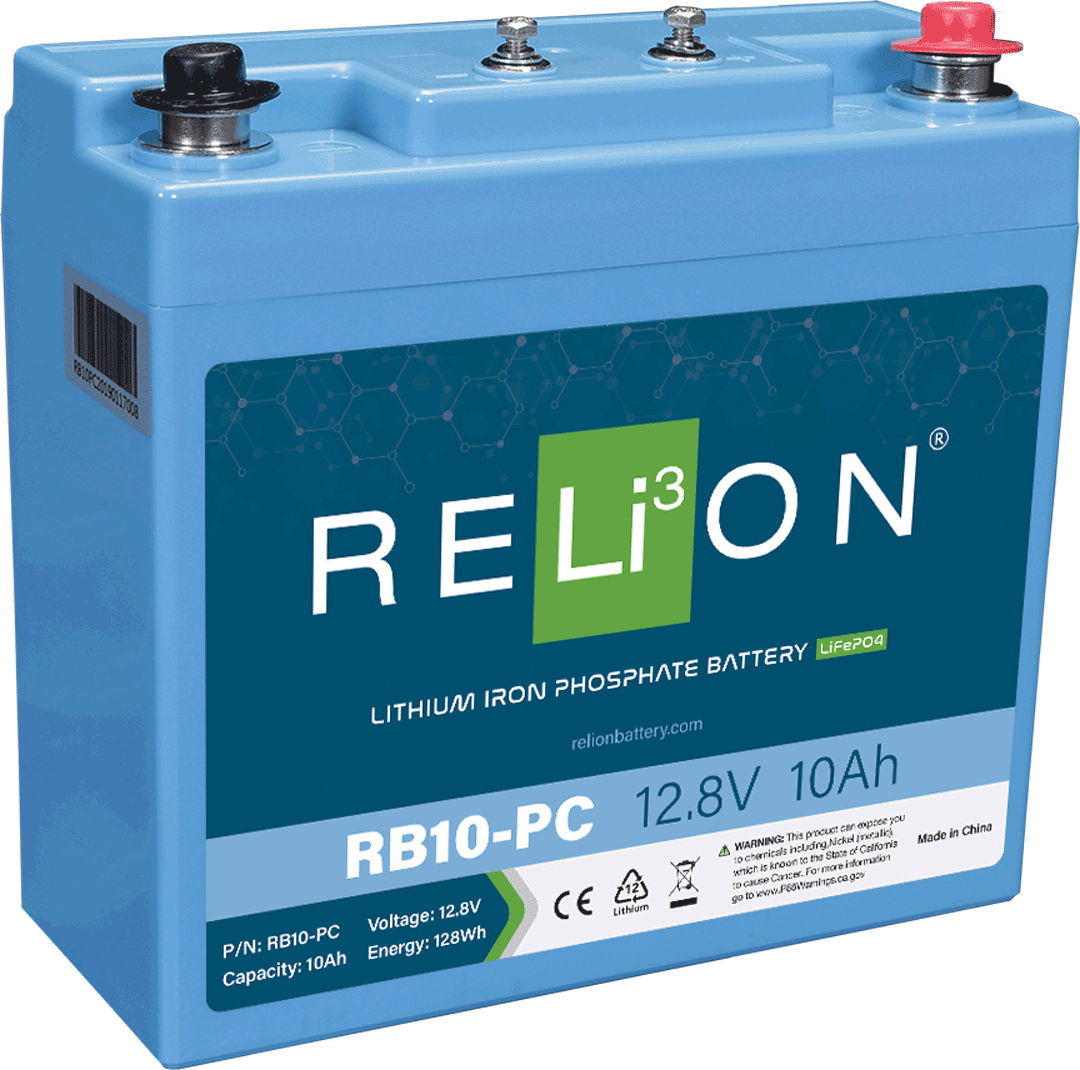

The RB10-PC deep cycle lithium battery is specially designed for wind turbine pitch systems. It’s perfect for use as a standby emergency power source with extremely high peak current requirements. In comparison to AGM batteries, lithium iron phosphate batteries do not decay under the constant centrifugal forces, yielding an extremely long life, thereby offering the lowest lifetime costs per kWh cycle. Up to six RB10-PC batteries (72V system) can be used in series to power the pitch of windmill blades.

Advantages of the RB10-PC Lithium Battery:

Extremely long life (up to 10x the life of a lead-acid battery)
Non-interrupt discharge (unique discharge terminals)
High discharge currents
High charge currents
High efficiency between charging and discharging

Interested in the RB10-PC?

If you're interested in purchasing or receiving more information on the RB10-PC wind turbine battery, please submit your contact information. Someone from the RELiON team will be in touch within 1 - 2 business days.

DATA SHEET

Electrical Specifications

Nominal Voltage 12.8V
Nominal Capacity 10Ah
Capacitry @ 25A 24 min
Energy 128 Wh
Resistance ≤30 mΩ @ 50% SOC
Efficiency 99%
Maximum Modules in Series 6

Mechanical Specifications

Dimensions (L x W x H) 7.1 x 3.0 x 6.6” 181 x 76 x 168 mm
Weight 4.4 lbs (2 kg)
Terminal Type Discharge: M6, Charge: M4
Terminal Torque M6: 32 - 39 in-lbs(3.6- 4.4 N-m)M4: 8.3 - 12.4 in-lbs(0.93 - 1.4 N-m)
Case Material ABS
Enclosure Protection IP56
Cell Type - Chemistry Cylindrical - LiFePO4

Discharge Specifications

Maximum Continuous Discharge 50A
Peak Discharge Current 70 A (<3s)
BMS Discharge Current Cut-Off None
Recommended Low Voltage Disconnect 11V
BMS Discharge Voltage Cut-Off None
Short Circuit Protection None

Charge Specifications

Recommended Charge Current 5A
Maximum Charge Current 10A
Recommended Charge Voltage 4.2V - 14.6 V
BMS Charge Voltage Cut-Off 15.6 V (3.9 ±0.025 vpc)(1.2 ±0.3s)
Reconnect Voltage 15.2 V (3.8 ±0.05 vpc)
Balancing Voltage 14.4 V (3.6 ±0.025 vpc)

Temperature Specifications

Discharge Temperature -4 to 140°F (-20 to 60°C)
Charge Temperature 32 to 113°F (0 to 45°C)
Storage Temperature 23 to 95°F (-5 to 35°C)
BMS High Temperature Cut-Off - Charge 149°F ±41°F (65°C ±5°C)
Reconnect Temperature - Charge 113°F ±41°F (45°C ±5°C)

Compliance Specifications

Certifications CE (battery) UL1642 & IEC62133 (cells)
Shipping Classification UN 3480, CLASS 9

Performance Characteristics
