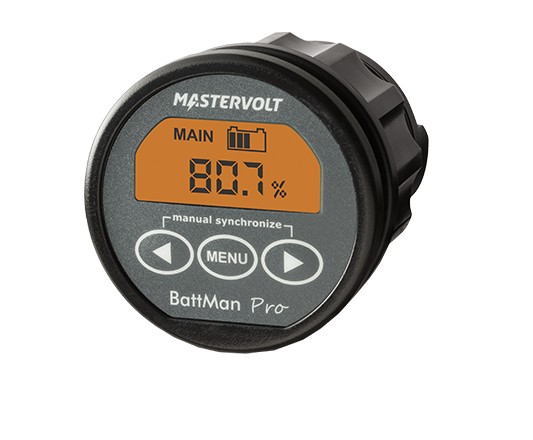

Mastervolt BattMan Pro Battery Monitor
RELiON's Legacy Series batteries, Mastervolt's shunt-based BattMan Pro battery monitor (12/24 V DC) provides critical information about the status of your battery bank under all circumstances. Moreover it will warn you when your battery bank is empty. The BattMan Pro also displays the remaining time until your battery needs to be charged and stores special battery status events.">
PRICE: $343.78
FREE GROUND SHIPPING ( Estimated 1 - 2 weeks shipping.)
* Within the continental U.S. only
A great accessory to be used with RELiON's Legacy Series batteries, Mastervolt's shunt-based BattMan Pro battery monitor (12/24 V DC) provides critical information about the status of your battery bank under all circumstances. Moreover it will warn you when your battery bank is empty. The BattMan Pro also displays the remaining time until your battery needs to be charged and stores special battery status events.
PRODUCT REVIEWS
DATA SHEET
DOWNLOAD PDFGENERAL SPECIFICATIONS |
|
|---|---|
| Number of Battery Outlets | 2; Service (fully), Starter (voltage) |
| Display/Read-out | Voltage Current, Amp-hours, Time Remaining, |
| Battery Capacity in %, Special Battery Status Events | |
| Languages on Display | Universal |
| Built-in Depth | 72.5 mm (2.9 inch) |
| Dimensions | Ø 64 mm, depth 79 mm |
| Dimensions Shunt, H x W x D | 87 x 45 x 35 mm (3.4 x 1.8 x 1.4 inch) |
| Weight | 0.15 kg (0.3 lb) |
| Protection Category | IP65 (splash proof display) |
| Compatible Batteries | RELiON Legacy Series (RB) |
TECHNICAL SPECIFICATIONS |
|
|---|---|
| Max. Ah Capacity | 9999 Ah |
| Supply Voltage | 9-35 V |
| Voltage Range | 0-35 V |
| Current Consumption (backlight off) | 8 mA/12 V, 6 mA/24 V |
| Current Consumption (backlight on) | 30 mA/12 V, 18 mA/24 V |
| Voltage Resolution | 0.01 V |
| Voltage Accuracy | ± 0.3% |
| Shunt Specification | 500 A / 50 mV (service set) |
| Current Measurement Range | 0-500 A |
| Current accuracy | ± 0,4 % |
| Battery Alarm Contact | Yes, potential free |
| Remaining Time Indication | Yes |
| Historical Data | Yes |
| MasterBus Compatible | No |
| Connection Cable (6-wire) Necessary | Yes |
| Modular Cable Necessary | No |
