Mastervolt BattMan Lite Battery Monitor
RELiON's Legacy Series Batteries, Mastervolt's BattMan Lite shunt-based battery monitor (12/24V DC) provides critical information about the status of your battery bank under all circumstances. Moreover it will warn you when your battery bank is empty.
">
">
PRICE: $278.48
FREE GROUND SHIPPING ( Estimated 1 - 2 weeks shipping.)
* Within the continental U.S. only
A great accessory to be used with RELiON's Legacy Series Batteries, Mastervolt's BattMan Lite shunt-based battery monitor (12/24V DC) provides critical information about the status of your battery bank under all circumstances. Moreover it will warn you when your battery bank is empty.
PRODUCT REVIEWS
DATA SHEET
DOWNLOAD PDFGENERAL SPECIFICATIONS |
|
|---|---|
| Number of battery outlets | 2; Service (fully), Starter (voltage) |
| Display/Read-out | Voltage, Current, Amp-hours, Battery Capacity in % |
| Languages on Display | Universal |

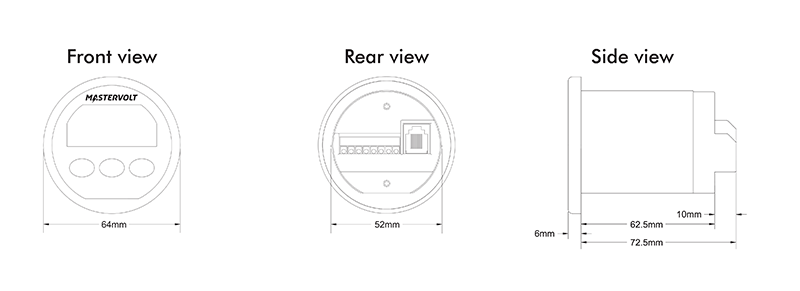

| Built-in Depth | 72.5 mm (2.9 inch) |
| Dimensions | Ø 64 mm, depth 79 mm |
| Dimensions shunt, H x W x D | 87 x 45 x 35 mm (3.4 x 1.8 x 1.4 inch) |
| Weight | 0.15 kg (0.3 lb) |
| Protection Category | IP65 (splash proof display) |
| Compatible Batteries | RELiON Legacy Series (RB) |
TECHNICAL SPECIFICATIONS |
|
|---|---|
| Max. Ah Capacity | 9999 Ah |
| Supply Voltage | 9-35 V |
| Voltage Range | 0-35 V |
| Current Consumption (backlight off) | 8 mA/12 V, 6 mA/24 V |
| Current Consumption (backlight on) | 30 mA/12 V, 18 mA/24 V |
| Voltage Resolution | 0.1 V |
| Voltage Accuracy | ± 0.3% |
| Shunt Specification | 500 A/50 mV (service set) |
| Current Measurement Range | 0-500 A |
| Current Accuracy | ± 0,4 % |
| Battery Alarm Contact | Yes, potential free |
| Remaining Time Indication | No |
| Historical data | No |
| MasterBus Compatible | No |
| Connection Cable (6-wire) Necessary | Yes |
| Modular Cable Necessary | No |
